- Simple, compact and generous machine appearance
- super wide mains input range
- Excellent microprocessor to make sure reliable operation
- Compatible generators
- Mains restart function
- Output modified sine wave
- Automatic Charge in off-mode
- Cold start act
- Automatic adjustment of the AC mains voltage rise,
- voltage cleared stable voltage output
Technical Parameter :
∞ Model : 650VA
∞ Capacity : 650VA/360W
Input
∞ Voltage : 220VAC
∞ AC Mains Input Voltage Range : 145-280 VAC ( same as AC mains )
∞ Frequency : 50Hz
Output
∞ Voltage Range ( Battery Mode ) : 10%
∞ Frequency Range ( Battery Mode ) : 50Hz + 1Hz
∞ Transfer Time : <6ms
∞ Waveform ( Battery ) : Modified sine wave
Battery
∞ Battery Type & Quantity : 12 V7.2Ah x1
∞ Battery Charging Time : 6 hours charge to 90%

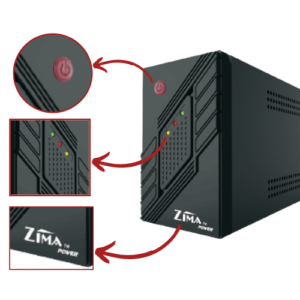

LED Indicators
∞ AC Mode : Green light
∞ Battery Mode : Red light flash
Audible Alarm
∞ Low Battery : Alarm beeps every six seconds
∞ Overload : Alarm beeps every seconds
∞ Fault : Alarm beeps continuously
Protection Function
∞ Comprehensive Protection : Overload, deep discharge and over – charge protection
Enviroment
∞ Temperature And Humidity : Relative humidity 0-90 % and temperature
0-40 % ( No- condensing )
∞ Noise : les than 40dB at one meter distance
Physical Function

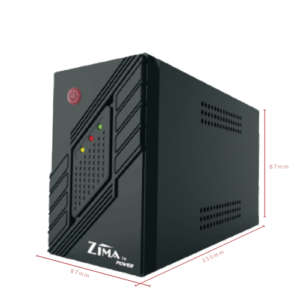

∞ Dimension D*W*H(mm) : 410x300x435
∞ Net Weight (kgs : 5.5
