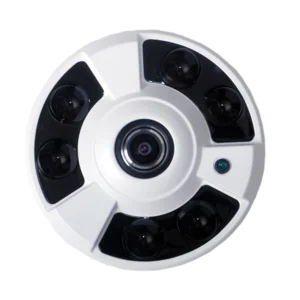

Model YS-818-FISH-EYE 960p
Let's Share
Features
Technical Data
Downloads
Request Information
| Model | YS-818-FISH EYE 960p |
| Pickup Device | 1/3 CMOS APTINA AR0130 +NVP2341 H NEXT CHIP KOREA DSP |
| Video System | PAL/NTSC |
| Pixels | 1080 (H) *960P (V) |
| Video Frame Rate | 1080×960@25fps |
| Video Output | AHD |
| AHD VIDEO distance | Up to 300 meters lossless transmissions with 75-3 coax |
| Lens | 3.6MM, Standard option 6mm,8mm,12mm |
| Min. Illumination | 0.01Lux/F=1. 2, AGC on (0Lux IR ON) |
| Day & Night | ICR switch |
| Infrared Lamp | 4pcsArray φ5/850nm Infrared Lamp ORIGINAL FROM Taiwan |
| IR Distance | 20m |
| Electronic Shutter | Support slow shutter, 1/60 (1/50) s~1/100,000s |
| DNR | 2D/3D |
| WDR | Super WDR |
| Sense-up | Auto (X2-X512) |
| Smart IR | Support |
| OSD Menu language | Chinese / English |
| Exposure | Standard / Super WDR / BLC / HLC / Defogging |
| AWB | Auto |
| Day/Night Mode | External / auto /B/W / Color |
| Advanced setting | Camera title / Mirror / motion detection / privacy zone / Language / RS485 |
| Operating Temperature | -20°C ~ 50°C |
| Power Supply | DC12V ±10% |
| Power Consumption | 180mA / 370mA (IR ON) |
| Weight | 1.15KG |
| Storage temperature | -20°C to +60°C, RH 90% Max |
| Dimension | 110mm*92mm |
| Weight | 450g |
