ZIMA HD™

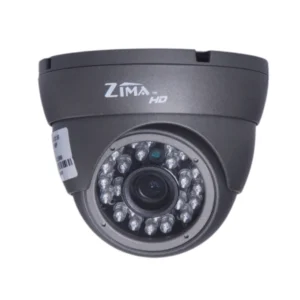

Model MZ-DA-CAH-2013M
Model MZ-DA-CAH-2013M delivers dependable surveillance performance for your home or business. Built for clear high-definition monitoring and reliable recording. A smart, secure solution for round-the-clock protection.
HD Monitoring
Reliable high-definition video monitoring.
Secure Protection
Designed for dependable security coverage.
Smart Recording
Efficient recording and storage capability.
Remote Viewing
Monitor your system from anywhere.
KEY FEATURES
- Model: MZ-DA-CAH-2013M
- Resolution: 1.3 Mega Pixel
- Main Chip: High performance
- Image Sensor: 1/4″ SONY238 Sensor
- Effective Pixel: PAL : 1280*960@25fps
- Signal System: PAL/NTSC
- Video Standard: Follow AHD and CVBS Standard
- Video Output: 1CH AHD HD/CVBS Standard Singal Output(Switchable)
- Max Transmission Distance: Common 75-3lines can be up to 500m
- Lens size: 3.6mm/6mm/8mm/12mm/16mm
MZ-DA-CAH-2013M
Model
DC12V
Power Supply
1.3 Mega Pixel
Resolution
High performance
Main Chip
1/4″ SONY238 Sensor
Image Sensor
PAL : 1280*960@25fps
Effective Pixel
TECHNICAL OVERVIEW
| Model | MZ-DA-CAH-2013M |
| Resolution | 1.3 Mega Pixel |
| Main Chip | High performance |
| NVP2431H ISP processor | |
|---|---|
| Image Sensor | 1/4″ SONY238 Sensor |
| Effective Pixel | PAL : 1280*960@25fps |
| NTSC : 1280*960 30fps | |
| Signal System | PAL/NTSC |
| Video Standard | Follow AHD and CVBS Standard |
| Video Output | 1CH AHD HD/CVBS Standard Singal Output(Switchable) |
| Max Transmission Distance | Common 75-3lines can be up to 500m |
| Lens size | 3.6mm/6mm/8mm/12mm/16mm |
| Minimum Illumination | 0.000LUX/F1.2(Led on) |
| IR-CUT | Auto switch |
| LED | 36 IR |
| IR Distance | 20m to 50m can choose lens |
| Shutter Speed | 4/25s-1/45,000s |
| BLC | Off/Low/Medium/High/Highest |
| White Balance | Auto White Balance |
| HLC | Spport |
| Operation Temperature | 10°C~55°C |
| Power Supply | DC12V |
| Housing Material | Metal |
| IP Grade | IP66 |
DOWNLOADS
- Model MZ-DA-CAH-2013M_SpecificationAvailable on request
