ZIMA HD™

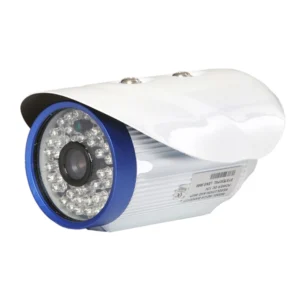

Model MZ-CA-BAH-0013T
Model MZ-CA-BAH-0013T delivers dependable surveillance performance for your home or business. Built for clear high-definition monitoring and reliable recording. A smart, secure solution for round-the-clock protection.
HD Monitoring
Reliable high-definition video monitoring.
Secure Protection
Designed for dependable security coverage.
Smart Recording
Efficient recording and storage capability.
Remote Viewing
Monitor your system from anywhere.
KEY FEATURES
- Model: MZ-CA-BAH-0013T
- Pickup Device: 1/3 CMOS APTINA AR0130 +NVP2341 H NEXT CHIP KOREA DSP
- Video System: PAL/NTSC
- Pixels: 1080 (H) *960P (V)
- Video Frame Rate: 1080×960@25fps
- Video Output: AHD
- AHD VIDEO distance: Up to 300 meters lossless transmissions with 75-3 coax
- Lens: 3.6MM, Standard option 6mm,8mm,12mm
- Min. Illumination: 0.01Lux/F=1. 2, AGC on (0Lux IR ON)
- Day & Night: ICR switch
MZ-CA-BAH-0013T
Model
DC12V ±10%
Power Supply
PAL/NTSC
Video System
1080 (H) *960P (V)
Pixels
1080×960@25fps
Video Frame Rate
AHD
Video Output
TECHNICAL OVERVIEW
| Model | MZ-CA-BAH-0013T |
| Pickup Device | 1/3 CMOS APTINA AR0130 +NVP2341 H NEXT CHIP KOREA DSP |
| Video System | PAL/NTSC |
| Pixels | 1080 (H) *960P (V) |
| Video Frame Rate | 1080×960@25fps |
| Video Output | AHD |
| AHD VIDEO distance | Up to 300 meters lossless transmissions with 75-3 coax |
| Lens | 3.6MM, Standard option 6mm,8mm,12mm |
| Min. Illumination | 0.01Lux/F=1. 2, AGC on (0Lux IR ON) |
| Day & Night | ICR switch |
| Infrared Lamp | 4pcsArray φ5/850nm Infrared Lamp ORIGINAL FROM Taiwan |
| IR Distance | 20m |
| Electronic Shutter | Support slow shutter, 1/60 (1/50) s~1/100,000s |
| DNR | 2D/3D |
| WDR | Super WDR |
| Sense-up | Auto (X2-X512) |
| Smart IR | Support |
| OSD Menu language | Chinese / English |
| Exposure | Standard / Super WDR / BLC / HLC / Defogging |
| AWB | Auto |
| Day/Night Mode | External / auto /B/W / Color |
| Advanced setting | Camera title / Mirror / motion detection / privacy zone / Language / RS485 |
| Operating Temperature | 20°C ~ 50°C |
| Power Supply | DC12V ±10% |
| Power Consumption | 180mA / 370mA (IR ON) |
| Weight | 1.15KG |
DOWNLOADS
- Model MZ-CA-BAH-0013T_SpecificationAvailable on request
