ZIMA HD™

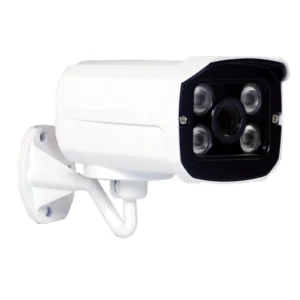

Model 960p-IR-IP-Camera
Model 960p-IR-IP-Camera delivers dependable surveillance performance for your home or business. Built for clear high-definition monitoring and reliable recording. A smart, secure solution for round-the-clock protection.
HD Monitoring
Reliable high-definition video monitoring.
Secure Protection
Designed for dependable security coverage.
Smart Recording
Efficient recording and storage capability.
Remote Viewing
Monitor your system from anywhere.
KEY FEATURES
- Model: 960p-IR-IP-Camera
- Input Voltage: DC 12V10%
- Power Consumption: 500mA(IR ON)
- Sensor: 1.3 Megapixel Progressive Scan CMOS Sensor
- Video Standard: H.264;,dual streams supported(main stream and Sub – stream)
- Stream: 0.1M ~ 6Mpbs adjustable
- Data Rate: Streaming 1 and 2 multi-level configurable
- Video format: H.264,AVI
- System: 60 / 50 Hz
- Resolution: 1280*960,1280*720;704*576
960p-IR-IP-Camera
Model
500mA(IR ON)
Power Consumption
DC 12V10%
Input Voltage
1.3 Megapixel Progressive Scan CMOS Sensor
Sensor
0.1M ~ 6Mpbs adjustable
Stream
Streaming 1 and 2 multi-level configurable
Data Rate
TECHNICAL OVERVIEW
| Model | 960p-IR-IP-Camera |
| Input Voltage | DC 12V10% |
| Power Consumption | 500mA(IR ON) |
| Sensor | 1.3 Megapixel Progressive Scan CMOS Sensor |
| Video Standard | H.264;,dual streams supported(main stream and Sub – stream) |
| Stream | 0.1M ~ 6Mpbs adjustable |
| Data Rate | Streaming 1 and 2 multi-level configurable |
| Video format | H.264,AVI |
| System | 60 / 50 Hz |
| Resolution | 1280*960,1280*720;704*576 |
| Day & Night | Auto(optional mechanical ICR) |
| Min. Illumination | Color 0.01Lux@F1.2, B/W 0.001Lux @ F1.2 |
| Image Settings | Brightness, saturation, sharpness, multi-level configurable |
| White Balance | Indoor/Outdoor |
| Electronic Shutter | Auto, manual (1/5~1/16000 sec, 16 levels selectable) |
| BLC | ON/OFF |
| Flickerless | 60, 50 Hz selectable |
| Compression Format | G.711 PCM 64Kbit/sec Optional) |
| Sensor In / Alarm Out | 1 x in, 1 x relay out (external & optional) |
| Triggering Event | Video motion detection (multiple zones and sensitivity levels), |
| audio detection (multi-sensitivity), schedule, I/O | |
|---|---|
| Triggering Reaction | Snapshot, e-mail, FTP, alarm out, ComproView notification |
| SDK | Available |
| Protocols | TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, DynDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4 |
| Ethernet | 10/100 Base-T, auto sensing, RJ-45, front LED indicator |
| Wireless | IEEE 802.11 b/g/n compliant (external & optional adapter) |
| User Group | 3 levels |
| Diagnostics | On / Off(Level adjustable) |
| ONVIF | Supported |
| Mobile Surveillance | Android, iPhone, iPhone/Android app |
| Web Surveillance | Internet Explorer |
| Advanced Surveillance | CMS clientSupport |
| Unit Configuration | Reboot, factory default, date/time synchronization |
| User Authentication | ID, Password |
| Firmware | HTTP mode, remote update |
| Lens Type & Mounting | 2.8mm~12mm 3MP Vari-focal Lens |
| IR LED | 36PCS,Φ5 LEDs |
| IR Distance | 10~50m |
| IRCUT | Day&Nigh,IR CUT Dual Filter ATUO switch |
| Dimensions | 265*115*85mm |
| Operating Temp. | 20~60 °C |
| Humidity | 20 ~ 80% RH non-condensin |
DOWNLOADS
- Model 960p-IR-IP-Camera_SpecificationAvailable on request
